Cable Sizer & Voltage Drop

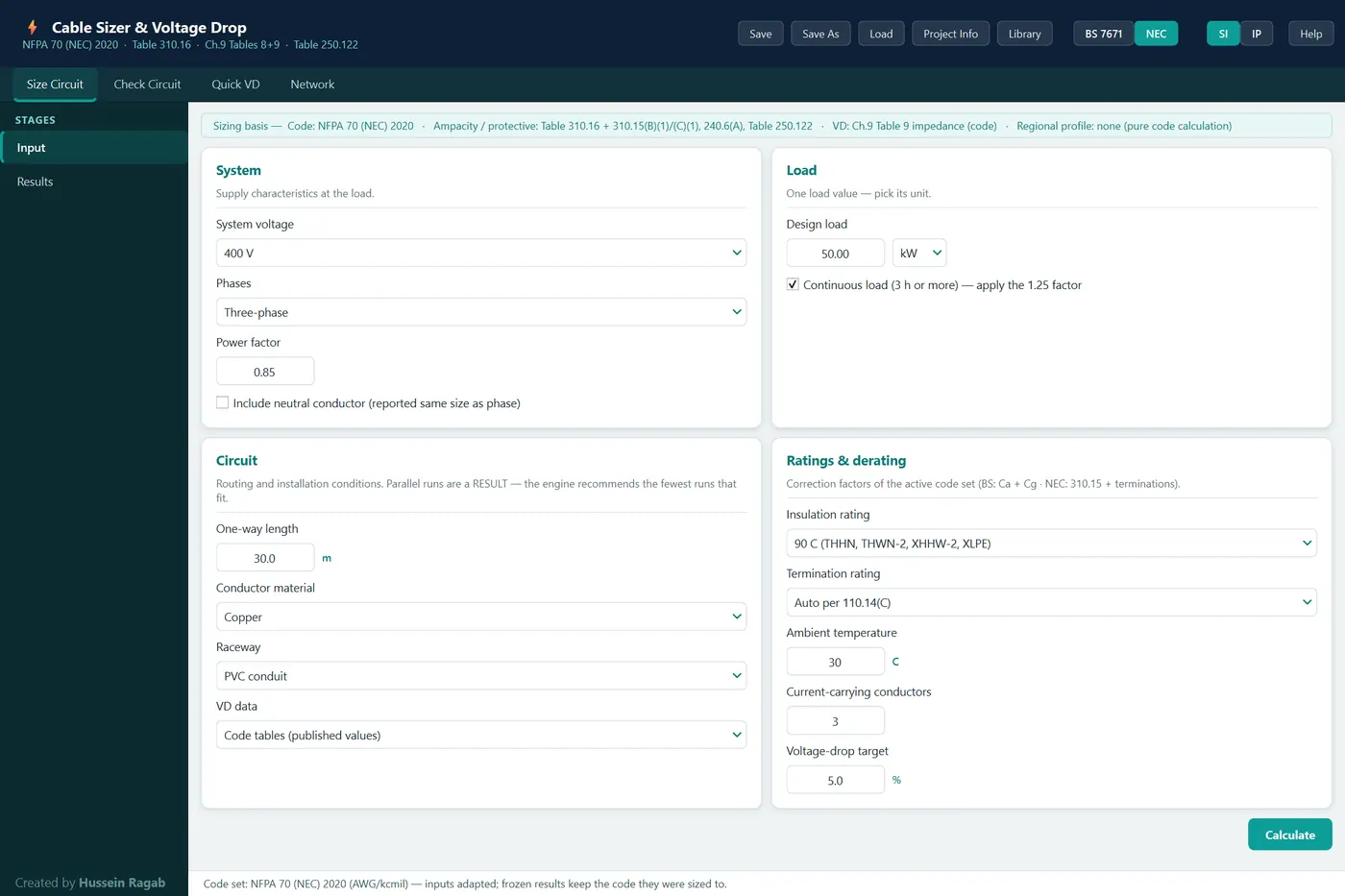

Four modes: Size Circuit (pick the cable from the design current, installation method, grouping, ambient and insulation), Check Circuit (verify a cable someone else chose), Quick VD, and Network — a full radial distribution network that sizes every feeder, allocates voltage drop cumulatively, cascades prospective fault current, and checks the protective conductor adiabatically at the far end. Regional authority requirements enter as editable limit profiles — a rule that cannot be met fails loudly instead of being silently exceeded.

Pinned to

Last reviewed against the printed text · 24 August 2026

Sample report

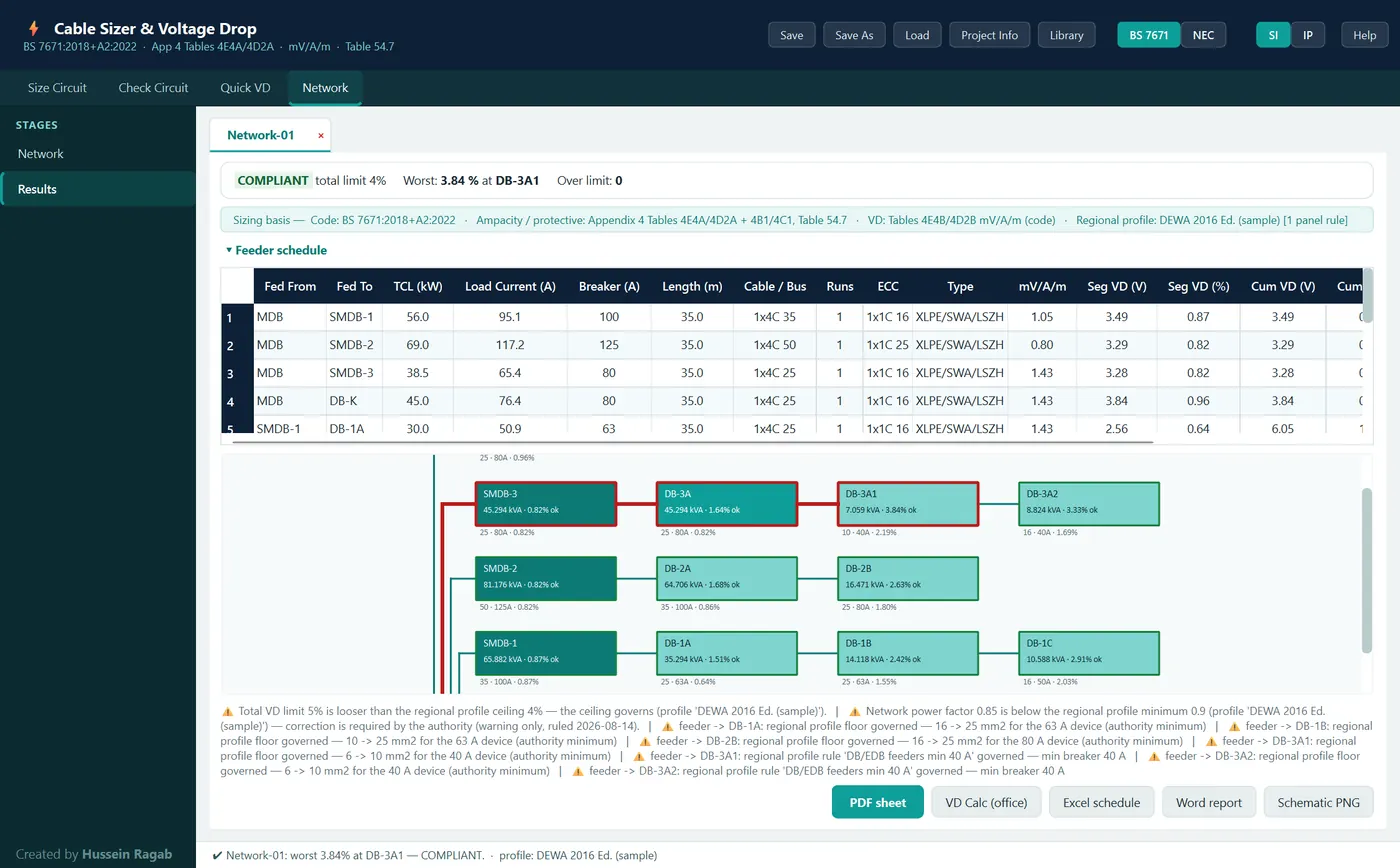

3.55 % worst voltage drop · compliantCable Sizing and Voltage Drop, MDB-01View the issued report
